Which IoT Sensors are Best Suited for Your Maintenance Operations?

Maintenance managers know that every unplanned equipment failure is more than a simple breakdown; it disrupts production, sparks safety hazards, attracts costly compliance fines, and results in skyrocketing repair bills. What if your equipment could detect signs of failure before they happen? Today’s IoT sensors make that vision a reality, capturing vibration, temperature, and pressure data and streaming it through edge or cloud analytics.

IoT sensors are emerging as the digital nervous system that converts silent machines into talking assets. They stream real-time signals on vibration, temperature, and pressure, turning silent machines into proactive reporters of their health.

This guide explores the core sensor families, including vibration, temperature, pressure, humidity, gas, energy, and position, and then illustrates how each one aligns with its corresponding maintenance use case. You’ll also learn why maintenance teams deploy them, how to start small with a test project, and the pitfalls to dodge as you scale.

What Exactly Is an IoT Sensor?

An IoT sensor is a compact, self-contained device that bridges the gap between the physical world and digital analytics. It continuously measures a specific parameter, such as temperature, vibration, pressure, or gas concentration. Then it uses built-in connectivity to stream that data to an edge gateway or cloud platform. Once in the cloud or an edge node, this data can be stored, visualized on dashboards, and run through analytics engines, enabling real-time monitoring and long-term trend analysis.

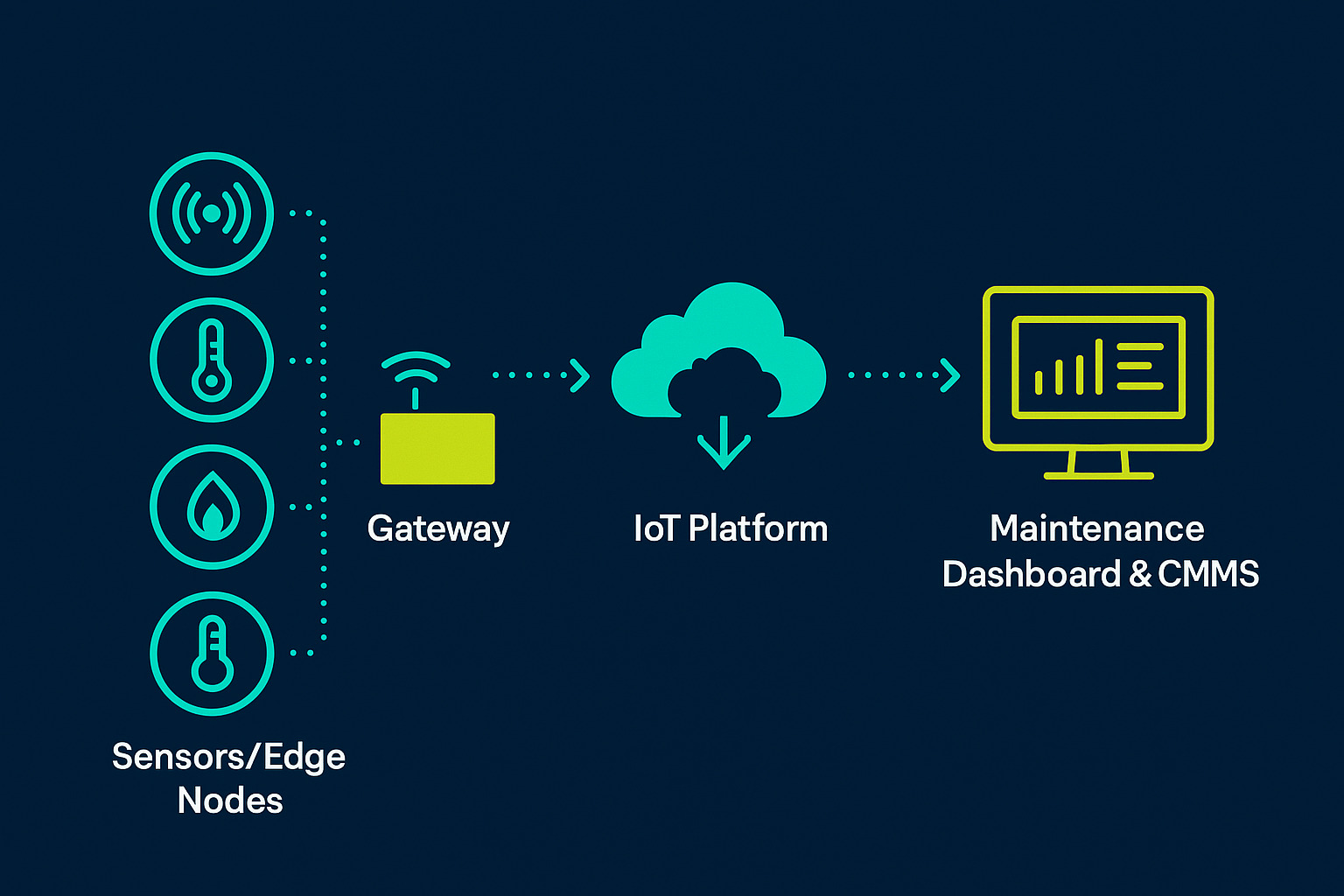

Architecture of IoT Maintenance Stack

1 . Sensor / Edge Node

Bolted to the motor, this single unit measures, processes, and transmits. Its sensing element converts vibration and heat into an electrical signal. The onboard microcontroller digitizes and filters this signal, and a LoRaWAN protocol pushes MQTT packets to the gateway. An internal battery powers the whole cycle for years. An example is the Fluke 3563 vibration-temperature sensor.

2 . Gateway

A gateway collects MQTT packets from dozens of nodes, buffers them, tags each record, and forwards the data to the cloud via Ethernet, 5G, or cost-efficient 4G LTE when high bandwidth isn’t required. If the network connection is lost, the data is buffered locally, and an on-site alarm is triggered to alert the team. An example of a gateway is the WISE-6610 V2 Industrial LoRaWAN Gateway.

3. IoT Platform / Cloud

A managed service, such as AWS IoT SiteWise, collects raw sensor messages, maps them to an asset model, stores them as time-series data, and applies simple calculations or threshold rules to generate alarms. It then publishes those alarms in real time to downstream services, such as AWS Lookout for Equipment, AWS IoT Events, dashboards, or your CMMS connector.

4 . Maintenance / CMMS Dashboard

When AWS IoT SiteWise detects a value outside its safe range, a small connector automatically sends the alert to your CMMS and opens a work order. Most teams progress through three stages: first, setting fixed alarm limits to trigger maintenance actions (Condition-Based Monitoring), adding models that forecast remaining useful life so urgent jobs are prioritized (Predictive Maintenance), and finally, allowing the system to prescribe specific actions to prevent or mitigate issues (Prescriptive Maintenance).

Why Maintenance Teams are Adopting IoT Sensors

1. Early Fault Detection

IoT sensors constantly monitor critical parameters, allowing maintenance crews to catch subtle warning signs long before a breakdown occurs. Instead of discovering a failing motor during the next scheduled inspection, teams receive instant alerts when any issues arise, turning unexpected shutdowns into planned interventions.

2. Reduced Costs and Downtime

By shifting from calendar-based checks to condition-based monitoring, organizations dramatically cut both direct repair expenses and the hidden costs of lost production. Maintenance is performed only when sensor data indicates a need, avoiding unnecessary part replacements and preventing lengthy, unplanned stoppages that ripple through the entire operation.

3. Enhanced Safety and Compliance

Sensors that track gas leaks, humidity spikes, or overpressure events provide real-time warnings, protecting personnel and helping firms meet regulatory standards. Automated alerts can trigger immediate shutdowns, reducing the risk of accidents and costly compliance fines.

4. Data-Driven Scheduling and Resource Optimization

Streaming sensor data directly into a CMMS or predictive-maintenance platform enables the automatic generation of work orders based on real-time machine health. This frees technicians from routine inspections, allows planners to allocate labor more efficiently, and ensures that spare parts are ordered promptly.

5. Scalability and Continuous Improvement

Once a project demonstrates a return on investment (ROI), it’s easy to replicate the same sensor types across similar assets or facilities. The growing data archive feeds advanced analytics and machine-learning models, unlocking deeper insights and transforming maintenance from a reactive necessity into a continuously improving, strategic capability.

The Maintenance Sensor Toolbox

With IoT’s architecture and role in maintenance now clear, it’s essential to understand which IoT sensors are best suited for your maintenance operation and select the sensing hardware that will supply the data you need. Below is a snapshot of the prominent sensor families, including what each measures, the faults it uncovers, and the environments where it excels:

Vibration Sensors

Accelerometers and acoustic-emission probes monitor rotating parts for imbalance, misalignment, looseness, and bearing wear. They keep manufacturing plants' production lines humming, protect turbine trains in energy and utilities, and flag early wheelset problems in transport fleets before they strand passengers or freight.

Temperature Sensors

Thermocouples, RTDs, and infrared nodes track hot-spot drift in motors, HVAC coils, breaker lugs, vaccine fridges, and kitchen walk-ins. That makes them indispensable across healthcare facilities (lab freezers), hotels and restaurants (cold-chain food safety), and data-driven campuses where server racks or research autoclaves must stay within tight limits.

Pressure & Flow Sensors

Piezoresistive transmitters and Coriolis meters detect leaks, blockages, and pump cavitation in any liquid or gas circuit. They protect crude and water pipelines in the energy and utilities sector, keep boiler loops efficient in municipal buildings, and maintain correct tire and brake pressure in bus or rail fleets.

Humidity & Moisture Sensors

Capacitive RH probes and dielectric moisture rods flag condensation, moisture ingress, or overdry conditions. From pharmaceutical cleanrooms and museum archives (higher-education collections) to cold-storage warehouses in retail grocery chains, they prevent mould, corrosion, and product spoilage before it starts.

Gas & Chemical Sensors

Electrochemical, metal-oxide, or catalytic-bead detectors pick up ppm-level refrigerant, combustible, or toxic leaks. They safeguard ammonia ice plants in arenas and stadiums, CO₂ systems in restaurant beverage lines, chlorine dosing at municipal waterworks, and hydrocarbon transfers at refineries, triggering ventilation or shutdowns long before human senses notice.

Current & Energy Sensors

Split-core CT clamps and Rogowski coils monitor load, phase balance, and power quality. They avert nuisance trips in hospital operating suites, balance feeders in retail data centers, track solar string performance in campus microgrids, and verify submetering in large hotel resorts to pinpoint waste.

Position, Proximity & Strain Sensors

Inductive or capacitive switches, optical encoders, and foil strain gauges verify motion, alignment, and structural stress. They keep robot cells in manufacturing on target, prevent belt mis-track on airport and warehouse conveyors, detect overload on agricultural grain silos, and ensure stage-rigging safety in religious or non-profit event halls.

How to Select the Right Sensors

Step 1: Define Measurement Objectives and Constraints

Pin down what you must measure (temperature, vibration, level), over what range and resolution, and how fast the reading must update. List any site‐specific limits, such as humidity, dust, wash-down, and hazardous areas. Conclude with a realistic budget that covers the purchase, installation, and lifetime maintenance.

Step 2: Map Critical Assets and Failure Modes

Identify the machinery that is most critical to both production and safety. For each, determine the initial physical indicators of potential issues, including elevated temperature, increased vibration, or decreased pressure.

Step 3: Match Sensing Modality to Physical Precursors

Pick the sensor that directly tracks each warning sign: vibration transducers for bearing wear, thermocouples for hotspots, pressure probes for seal leaks, and acoustic sensors for steam traps.

Step 4: Check Core Sensor Characteristics

Verify the accuracy, precision, sensitivity, response time, stability, reliability, and calibration interval against the goals established in Step 1. Reject any Sensor that does not easily meet the highest-priority spec.

Step 5: Validate Environmental and Regulatory Specs

Ensure that sensors can withstand the site’s temperature, humidity, dust, and chemicals, and carry any required ATEX, UL, or IP ratings for hazardous zones.

Step 6: Plan Connectivity, Power, and Signal Output

Choose Wi-Fi, LoRaWAN, NB-IoT, wired, or BLE based on your specific requirements, including range and interference. Decide on battery packs, energy harvesting, or mains power. Confirm that the sensor outputs the data format (analog, digital, Modbus, or MQTT) that your gateway accepts.

Step 7: Ensure Data Pipeline into CMMS or PdM Platform

Verify that sensor data can travel through open APIs or native connectors into your analytics layer and CMMS. For example, stream selected assets from AWS IoT SiteWise to AWS Lookout for Equipment for real-time anomaly scores, while routing the same alarms to your CMMS so it automatically opens or updates work orders.

Step 8: Test, Calibrate, and Pilot

Deploy a small set on the less critical machine or asset, run for a few weeks, and validate that alerts align with real faults. Calibrate and tweak thresholds, document ROI, scale site-wide, or adjust and retry if the test project exposes gaps.

Challenges & Mitigation

Data Overload & False Positives

High-frequency streams from dozens or hundreds of sensors can overwhelm teams and trigger nuisance alarms. Deploy lightweight analytics at the edge, simple anomaly filters, or threshold adaptors to weed out noise and send only actionable alerts to central systems.

Security & OT/IT Convergence

Linking industrial sensors to corporate networks exposes control systems to cyber risks. To isolate operational traffic and guard against intruders, enforce strict network segmentation, require device authentication, and tunnel data over encrypted protocols, such as TLS for MQTT

Battery Life & Power Constraints

Wireless or battery-powered sensors must strike a balance between energy use and monitoring needs. Optimize duty cycles so devices sleep between readings, and consider energy-harvesting options (solar cells, vibration harvesters) to extend uptime without frequent battery swaps.

ROI Uncertainty

Upfront sensor deployments are costly, and in most cases, realizing a return on investment (ROI) takes time. Mitigate this by beginning with your highest-value, highest-risk assets, where avoided downtime delivers the most significant gains. Track early wins (e.g., fewer emergency repairs, reduced scrap) to build the case for scaling out.

Future Trends in IoT Sensors

Looking ahead, sensors will work together rather than alone: vibration, temperature, and pressure streams will merge in digital twin models of each asset, providing a clear picture and allowing teams to run “what-if” checks before making changes. Tiny machine-learning chips inside the sensors will identify anomalies in real-time, sending only urgent findings instead of raw data. New wireless-power and energy-harvesting techniques will keep these devices running for years without requiring battery swaps, even in hard-to-reach locations. Finally, fast 5G and private LTE links will carry sensor alerts in milliseconds, allowing a valve to adjust or a machine to shut down almost as soon as a problem appears.

Scaling Uptime with Sensors

By harnessing IoT sensors across various modalities, including vibration, temperature, and pressure, you can elevate your maintenance routines from reactive guesswork to data-driven science. Continuous monitoring provides early warnings, optimizes resource utilization, reduces downtime, and enhances safety and compliance. Whether you manage pumps, conveyors, chillers, or vehicle fleets, integrating even a handful of sensors can uncover hidden risks and deliver measurable ROI within weeks. Now is the moment to transform your maintenance culture: audit your most critical assets, pinpoint their dominant failure modes, and launch a pilot sensor-driven workflow.
